HP9000 VME CPU Specs

HP VME Single Board Computers (SBC) are amongst the most rugged and widely used today in civil aviation and military applications. Its 6U form factor has provided the flexibility required by engineers. The model 744/165L PA-RISC 7300LC board computer uses the standard HP-UX 10.20 or later operating system, a highly versatile system for multitasking, running your application programs and performing a variety of development tasks. Its ability to utilize both GSC & PMC mezzanine cards make the 744 one of the few VME boards to offer a wide range of IO options.

HP 743i CPU's

A4260A opt 201 (A2636-66001)
The HP 743i-64Mhz VME SBC without on board graphics features the PA-7100LC processor at 64Mhz with 1KB on chip I L1 and 256KB off chip unified I/D L1 cache.  The LASI ASIC features 8-bit single ended SCSI-2, 10MBit Ethernet, WD 16C522 compatible parallel, CD/DAT quality 16-bit stereo audio and NS 16550A compatible serial interface.

743 CPU

A4260A opt 202 (A2636-66013)
The HP 743i-64Mhz VME (SBC) with-on board graphics features the PA-7100LC processor at 64Mhz with 1KB on chip I L1 and 256KB off chip unified I/D L1 cache. The LASI ASIC features 8-bit single ended SCSI-2, 10MBit Ethernet, WD 16C522 compatible parallel, CD/DAT quality 16-bit stereo audio and NS 16550A compatible serial interface. 8-Plane on-board graphics will require a mini-din adapter cable.

sales@alimartech.com
743 CPU

A4260A opt 203 (A2636-66015)
The HP 743i-100Mhz VME (SBC) without on board graphics features the PA-7100LC processor at 100Mhz with 1KB on chip I L1 and 256KB off chip unified I/D L1 cache. The LASI ASIC features 8-bit single ended SCSI-2, 10MBit Ethernet, WD 16C522 compatible parallel, CD/DAT quality 16-bit stereo audio and NS 16550A compatible serial interface.

743 CPU

A4260A opt 204 (A2636-66016)
The HP 743i-100Mhz VME (SBC) with on-board graphics features the PA-7100LC processor at 100Mhz with 1KB on chip I L1 and 256KB off chip unified I/D L1 cache. The LASI ASIC features 8-bit single ended SCSI-2, 10MBit Ethernet, WD 16C522 compatible parallel, CD/DAT quality 16-bit stereo audio and NS 16550A compatible serial interface. 8-Plane on-board graphics will require a mini-din adapter cable.

743 Owner's Guide (PDF, 1.8MB)
743 CPU

HP 744 CPU's

A4510A opt 110 (A4500-66013)
The HP 744/132L VME (SBC) without on-board graphics features the PA-7300LC processor at 132Mhz with 64/64KB on-chip I/D L1 cache. The LASI ASIC features 8-bit single ended SCSI-2, 10MBit Ethernet, WD 16C522 compatible parallel, CD/DAT quality 16-bit stereo audio and NS 16550A compatible serial interface.



744/132L

A4510A opt 120 (A4500-66001)
The HP 744/132L VME (SBC) with on-board graphics features the PA-7300LC processor at 132Mhz with 64/64KB on-chip I/D L1 cache. The LASI ASIC features 8-bit single ended SCSI-2, 10MBit Ethernet, WD 16C522 compatible parallel, CD/DAT quality 16-bit stereo audio and NS 16550A compatible serial interface. On-board Visualize EG graphics will require a mini-din adapter cable.

sales@alimartech.com
744/132L CPU

A4511A opt 110 (A4500-66015)
The HP 744/165L VME (SBC) without on-board graphics features the PA-7300LC processor at 165Mhz with 64/64KB on-chip I/D L1 cache and 512KB off-chip unified I/D L2 cache. The LASI ASIC features 8-bit single ended SCSI-2, 10MBit Ethernet, WD 16C522 compatible parallel, CD/DAT quality 16-bit stereo audio and NS 16550A compatible serial interface.

744/165L CPU

A4511A opt 120 (A4500-66016)
The HP 744/165L VME (SBC) with on-board graphics features the PA-7300LC processor at 165Mhz with 64/64KB on-chip I/D L1 cache and 512KB off-chip unified I/D L2 cache. The LASI ASIC features 8-bit single ended SCSI-2, 10MBit Ethernet, WD 16C522 compatible parallel, CD/DAT quality 16-bit stereo audio and NS 16550A compatible serial interface. On-board Visualize EG graphics will require a mini-din adapter cable.

744 Owner's Guide (PDF, 1.4MB)
744/165L CPU

74x Option Cards

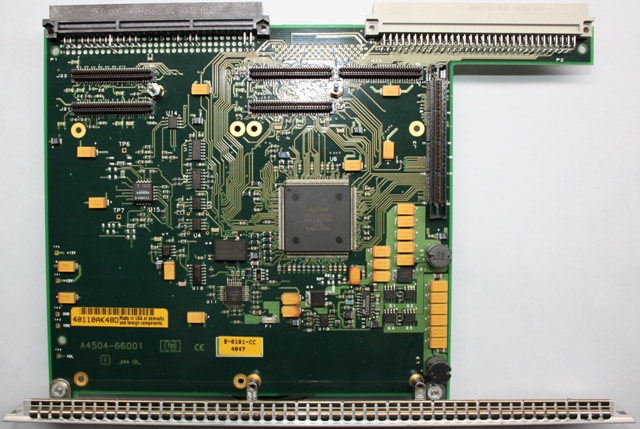

A4504A PMC Expansion Adapter (A4504-66001)
The A4504A is the PCI Mezzanine Card (PMC) bridge adapter that is used with the Model 743 and 744 board computers to adapt up to two industry standard +5V signaling PMC cards. The bridge adapter occupies one VME slot in addition to the CPU board. This adapter provides PMC slots 1 & 2.

A4504A
click

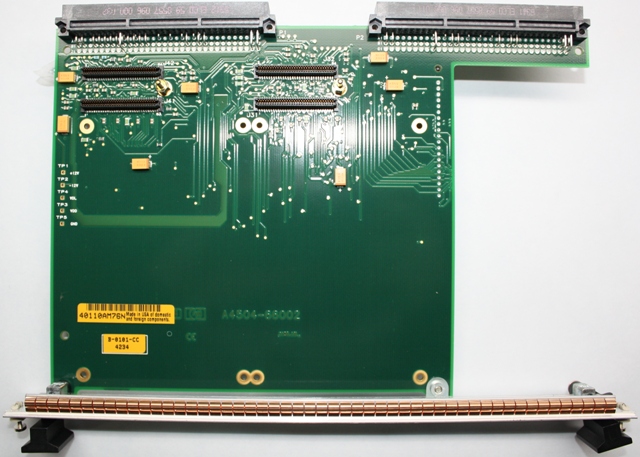

A4509A PMC Expansion Adapter (A4504-66002)
The A4509A is the PCI Mezzanine Card (PMC) bridge adapter that is used with the Model 743 and 744 board computers to adapt up to two industry standard +5V signaling PMC cards. The bridge adapter occupies one VME slot in addition to the CPU board and the required A4504A. This adapter provides PMC slots 3 & 4.

Installing the A4504A PMC Bridge Adapter and A4509A Expansion Adapter (PDF, 0.6MB)
A4509A
click

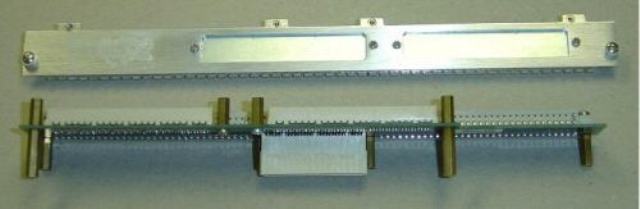

A4219A 2-Slot GSC Expansion Adapter (A4500-66008)
The A4219A is the General System Connect (GSC) expansion adapter that is used with the Model 743 and 744 board computers. The bridge adapter provides up to two industry standard +5V signaling GSC cards. The bridge adapter occupies one VME slot in addition to the CPU board.

A4219A
click

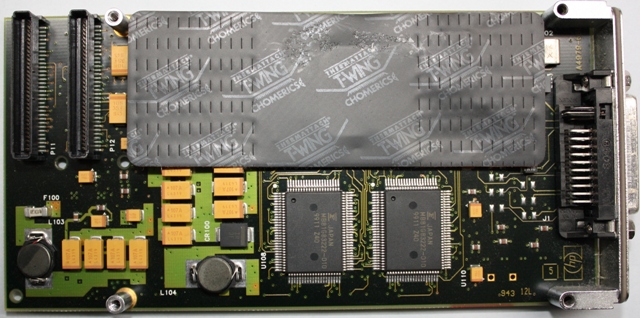

A4979A PMC Visualize EG Graphics Card (A4979-66001)
The A4979A is a PCI Mezzanine Card (PMC) graphics card that is used with the Model 743 and 744 board computers. The card can
provide 2D hardware acceleration, used by HP’s X11 server on HP-UX. The 3D hardware acceleration is available in conjunction with either of the Starbase, PHIGS, PowerShade or PEX APIs.

A4979A PMC Graphics Install guide (PDF, 0.6MB)
A4979A
click

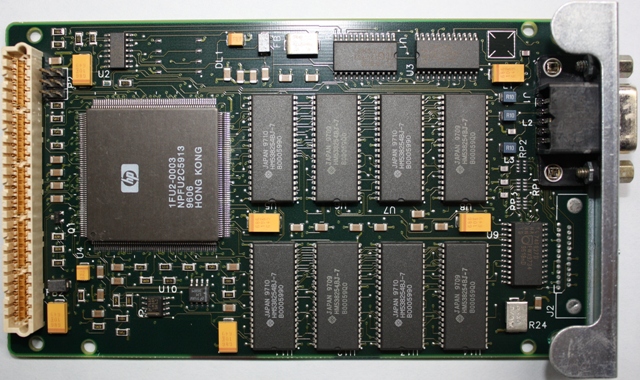

A4267A GSC 8-Plane Graphics Card (A2636-66003)
The A4267A is a General System Connect (GSC) graphics card that is used with the Model 743 and 744 board computers. The card can
provide 1280 x 1024 8-plane color graphics to a standard DN-15 pin connector.

A4267A
click

A4268A GSC FWD SCSI Adapter (A2636-66003)
The A4268A is a General System Connect (GSC) Fast-Wide SCSI Adapter that is used with the Model 743 and 744 board computers. The card complies with ANSI X3T9.2 SCSI specifications and has an NCR 53C720 SCSI I/O processor chip. The card allows the 74x CPU to be attached to external FWD SCSI devices.

A4268A GSC FWD Adapter Install guide (PDF, 0.6MB)
A4268A
click

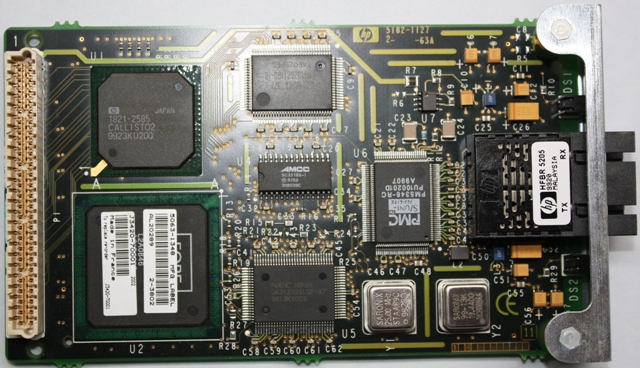

J3420B GSC ATM 155MBps Adapter (J3420-70001)
The J3420B is a General System Connect (GSC) ATM adapter that is used with the Model 743 and 744 board computers. The GSC ATM/155MBps Adapter uses MMF connections with SC connectors.

J3420B
click

Accessory VME, PMC & GSC Cards

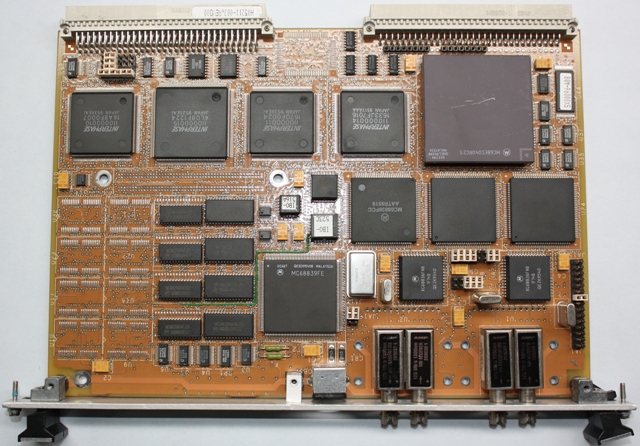

Interphase V/FDDI 5211 VME64 Controller
The V/FDDI 5211 is a high-performance node processor for 125 Mbps fiber optic FDDI (Fiber Distributed Data Interface) networks. Besides connecting a workstation or computer system based on VMEbus to an FDDI network, the 5211 can perform much of the communications protocol processing, plus certain network management functions required by FDDI.

VFDDI
click

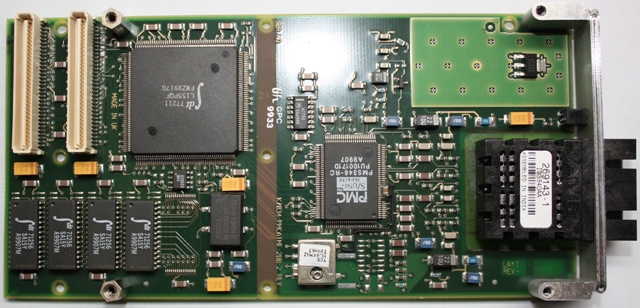

Radstone PMCATMF-100
The PMCATMF-100 General System Connect (GSC) ATM card that is used with the Model 743 and 744 board computers. Radstone’s PMC-ATMF is a 155 Mbits/sec ATM adapter for use in OC-3 fiber networks. PMC-based, the PMC-ATMF is a fourth-generation adapter that has been developed to address the need for reliable, high performance ATM in embedded systems. Applications for the PMC-ATMF range from low cost LANs, through enterprise level ATM backbones, to edge devices for WANs providing added value services.


PMCATMF-100
click

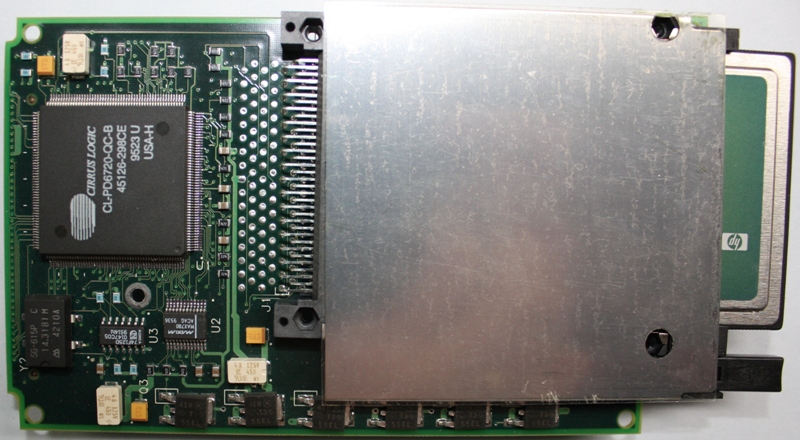

HP Z5117A PCMCIA
This PCMCIA Adapter connects to the A4261A HP 743rt VMEbus Board Computer as a mezzanine card assembly, and provides support for 10 and 20 MByte Flash Disk Cards to operate with the HP Real-Time (HP-RT) operating system.

Z5117A
click

Ramix PMC 243 MOT R40M
The Ramix PMC 243 MOT R40M embedded disk module offers a high performance, low cost option for file system and boot storage. With the PMC243 "single slot", computing solutions do not need to compromise on either capacity or performance.

PMC243
click

Ramix PMC664J
T


PMC664
click

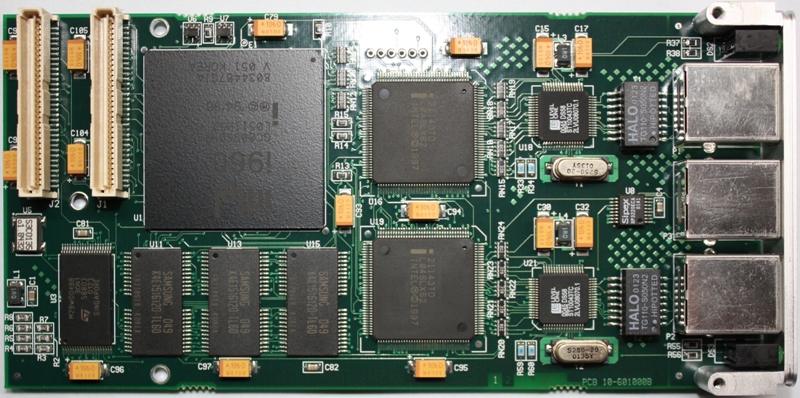

Ramix PMC664J Rev B.
The GE Fanuc / Ramix PMC664J 3-Port Serial I / O Module is an intelligent dual Ethernet interface PCI Mezzanine Card (PMC) offering two, fully independent 100 Mbit Ethernet channels using Twisted Pair media (10/100BaseTX).

PMC664JB
click

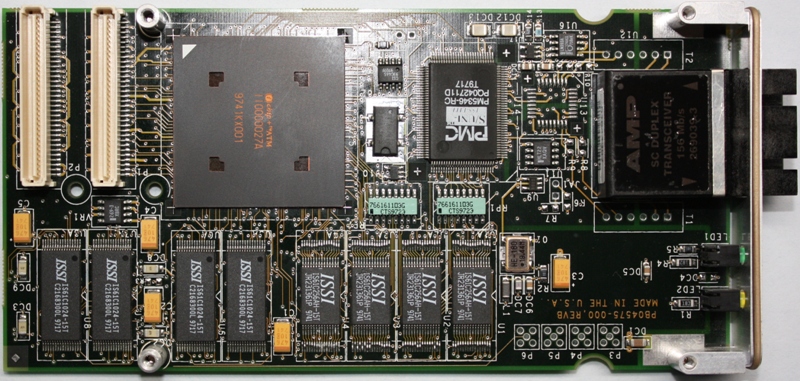

Interphase 4575-014
The Interphase 4575-014 ATM PMC Module was designed especially for high-availability, high-bandwidth telecommunications applications, the Interphase 4575 PMC ATM Over OC-3/STM-1 Communications Controller provides reliable ATM connectivity at 155 Mbps. Utilizing proven Interphase (i)chip plus ATM SAR technology, this controller is ideal for use in CompactPCI and VME-based communications servers.  H04575-004 H04575-024-C01

4575-014
click
